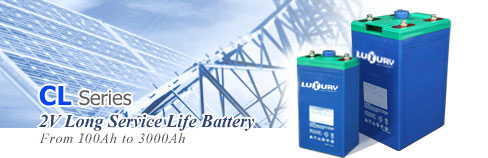

LUXURY CL series of VRLA batteries are recognized as the most reliable and high quality battery system in the industry. LUXURYCL series batteries designed with advanced AGM(Absorbent Glass Mat) technology, Long service life designed with 20 years, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.
Product Standards
You can expect our batteries meet with the standards DIN, IEC60986-21/22 & BS6290-4. We have obtained ISO9001 & ISO14001 certification. We have obtained UL approval (MH25860) for all types of batteries. We have obtained CE approval for all types of batteries. All these render our batteries to be compatible with requirements of world-level equipments.
General Features
• Environmentally friendly
• Completely Maintenance-Free
• Wide Operating Temperature Range(-15~+45~)
• Longer Life(20years designed life)
• Explosion Proof
• Valve Regulated & High Discharge Rate Capability
• Low Self Discharge
• Independent of Position
• Ease of Shipment
• No need of balanced charge or boost
• No Memory
Applications
• Communication equipment
• Telecommunication control equipment
• Emergency lighting systems
• Electric power systems
• Power station
• Nuclear power station
• Solar powered and wind powered systems
• Load leveling and storage equipment
• Marine equipment
• Power generation plants
• Alarm systems
• Uninterruptible power supplies
• Stand-by power for computers
• Medical equipment
• Fire and security systems
• Control equipment
• Stand-by electric power
|
Type |
Nominal vvVoltage(V)vv |
Nominal Capacity (10hr/Ah) |
Length |
Width |
Height |
Total Height |
Terminal |
Weight(Approx) |
|||||
|
mm |
in |
mm |
in |
mm |
in |
mm |
in |
Kg |
Pound |
||||
|
2 |
100 |
171 |
6.73 |
72 |
2.83 |
206 |
8.11 |
211 |
8.31 |
F10 |
7.2 |
15.87 |
|
|
2 |
150 |
172 |
6.77 |
102 |
4.02 |
205 |
8.07 |
217 |
8.54 |
F10 |
8.2 |
18.08 |
|
|
2 |
200 |
173 |
6.81 |
111 |
4.37 |
330 |
12.99 |
364 |
14.33 |
F10 |
15.0 |
33.07 |
|
|
2 |
300 |
171 |
6.73 |
151 |
5.94 |
330 |
12.99 |
364 |
14.33 |
F10 |
20.0 |
44.09 |
|
|
2 |
400 |
210 |
8.27 |
176 |
6.93 |
330 |
12.99 |
367 |
14.45 |
F10 |
28.0 |
61.73 |
|
|
2 |
500 |
242 |
9.53 |
173 |
6.81 |
330 |
12.99 |
365 |
14.37 |
F10 |
33.0 |
72.75 |
|
|
2 |
600 |
302 |
11.89 |
175 |
6.89 |
330 |
12.99 |
367 |
14.45 |
F10 |
40.0 |
88.18 |
|
|
2 |
800 |
410 |
16.14 |
175 |
6.89 |
330 |
12.99 |
367 |
14.45 |
F10 |
57.0 |
125.66 |
|
|
2 |
1000 |
475 |
18.70 |
175 |
6.89 |
330 |
12.99 |
367 |
14.45 |
F10 |
66.5 |
146.61 |
|
|
2 |
1500 |
400 |
15.75 |
350 |
13.78 |
345 |
13.58 |
382 |
15.04 |
F10 |
100.0 |
220.46 |
|
|
2 |
2000 |
490 |
19.29 |
350 |
13.78 |
345 |
13.58 |
382 |
15.04 |
F10 |
132.0 |
291.01 |
|
|
2 |
3000 |
710 |
27.95 |
350 |
13.78 |
345 |
13.58 |
382 |
15.04 |
F10 |
210.0 |
462.97 |
|
